Name: InVision USM
Brand: Rycote
SKU: RYC044901
Price: 28700.00 HUF
Availability: InStock
Rating: 5 (51 reviews)

Rycote

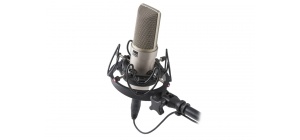

InVision USM

044901_invision_usm_with_audio-technica_microphone

044901_invision_usm_with_sanken_microphone

Termékkód: 044901

Univerzális mikrofonkosár 18 és 55mm közötti átmérővel rendelkező, maximum 750g tömegű mikrofonokhoz.

Fő előnyök:

Univerzális mikrofontartó - bármilyen 18-55mm átmérőjű nagymembrános mikrofonhoz megfelel.
Akár kétszer annyi kábel- és állvány közvetítette zajt képes kiküszöbölni, mint a hagyományos rugalmas felfüggesztők
Gyakorlatilag törhetetlen.
Nem tartalmaz rugalmas elemeket - sosem nyúlik ki, és nem kell újragumizni.

Leírás

A Rycote InVision mikrofonkengyelei már évek óta elérhetők a keskeny csővel rendelkező, filmesek és a sajtó által használt kispuska- és "stick" mikrofonokhoz. 2010-ben azonban bemutatták a korszakváltó InVision Univerzális Stúdió Mikrofontartót is (Universal Studio Mount - USM) amely nagymembrános stúdiómikrofonokkal használható stúdiófelvételek során.

A többi InVision mikrofontartóhoz hasonlóan az USM is a Rycote által szabadalmaztatott, rezgésnek ellenálló lírát használja, de ezen a mikrofonkosáron a W-alakú lírák egy középső rögzítőgyűrű körül helyezkednek el, amelyet az állítható szorítók segítségével bármilyen mikrofonhoz igazíthatunk 18 és 55mm-es átmérő között.

A Rycote USM a 21. századhoz gondolja újra a mikrofonfelfüggesztés koncepcióját elhagyva minden elasztikus elemet és korszerű alapanyagokat használva, hogy egy gyakorlatilag törhetetlen mikrofonkosarat hozzon létre, amelynek teljesítménye messze meghaladja a hagyományos, elasztikus mikrofonkengyelekét. A Rycote gyárában végzett, kontrollált tesztek során az USM kétszer akkora izolációt nyújtott, mint a hagyományos mikrofonfelfüggesztő rendszerek.

Specifikációk

Mikrofonkosár tömege: 154g (5.4 oz)
Teljes átmérő: 120mm (4.72")
Kompatibilis mikrofonok átmérője: 18-55 mm
Mikrofon hossza: 300 mm-ig
Mikrofon maximális tömege (függőleges elhelyezés): 750 g (26.5 oz)
Mikrofon maximális tömege (vízszintes elhelyezés): 500g (17.6 oz)
Suspension Rotation (maximum): 175%

Termék magassága: 70mm
Termék hossza: 170mm (6.69")
Termék szélessége: 120mm
Nettó tömeg: 155.6 g

Kompatibilitás

ADK A-51	The A-51 condenser microphone is designed for use in studios, concert halls, and broadcast applications. It has wide frequency respon...	For angled and vertical use
ADK A-51TC	The A-51TC features a large 1' diameter capsule. It is a single pattern (cardioid) tube microphone. The circuit design utilizes a sp...	For angled and vertical use
ADK Area 51	A dual diaphragm top-of-the-line tube microphone. It is similar in electronic design to the A-51TC but nine switched polar patterns a...	For angled and vertical use
ADK Hamburg	A large diaphragm fixed cardioid microphone related to the Vienna but with a 1' 6 micron capsule. The diaphragm is centre-connected a...	For angled and vertical use
ADK Vienna	The ADK Vienna Edition is intended as pop/rock vocal microphone that can handle a wide variety of high SPL situations. It is a fixed ...	For angled and vertical use
AKG C 12 VR	The new C 12VR is true to the original C 12's electronic and acoustic design, with only subtle refinements incorporated to increase o...	For angled and vertical use
AKG C 3000	Large diaphragm cardioid condenser microphone for universal use, designed and made specially to suit the needs of musicians as well a...
AKG C 426 B	This externally polarised, switchable condenser is a linear descendent of AKG's original C 24 stereo microphone. The upper hea...	For angled and vertical use
AKG D 230	The D230 incorporates a high-output rare earth magnet structure designed to deliver exceptional sensitivity and clarity in the demand...
AKG Perception 100	The Perception 100 is a rugged metal-bodied studio microphone. The large diaphragm capsule is a 25mm true condenser type and has a on...	For angled and vertical use
AKG Perception 200	A large diaphragm studio microphone essentially identical to the Perception 100 but with a switchable bass cut and pad.	For angled and vertical use
AKG Perception 400	The Perception 400 is a studio microphone with three selectable patterns. It is a large capsule (25mm) type with dual gold-sputtered ...	For angled and vertical use
Aston Mics Origin	The Aston Origin is a high-performance cardioid condenser microphone utilising a one inch (1″) gold evaporated capsule. It is v...
Aston Mics Spirit	The Aston SPIRIT is a high-performance, switchable pattern, microphone utilising a 1” gold evaporated capsule. A switch on the ...
Audio-Technica AT 2035	A 'budget-friendly' studio microphone with a large diaphragm and a fixed cardioid pattern. The design uses a fixed-charge bakplate l...	For angled and vertical use
Audio-Technica AT 2050	A 'budget friendly' studio microphone with a variable pattern. The large gold-vaporised dual diaphragm design can be switched to omni...	For angled and vertical use
Audio-Technica AT 3060	A large-diaphragm tube design that does not need a dedicated power supply - it operates from 48V phantom power. The cardioid back-ele...	For angled and vertical use
Audio-Technica AT 4047/SV	Designed for professional recording and critical applications in broadcast and live sound, the AT4047/SV has a transformer-coupled ou...	For angled and vertical use
Audio-Technica AT 4050	Superior performance for studio recording and live sound applications is provided by the AT4050's remarkable combination of warm, tra...	For angled and vertical use
Audio-Technica AT 4060	This microphone combines a vintage tube sound with the versatile performance necessary for the most demanding studio applications. It...	For angled and vertical use
Audix CX-111	A true condenser microphone of classic design. The capsule is a 25mm gold-sputtered single diaphragm type. The housing is machined br...	For angled and vertical use
Audix CX-112	A large (1.07') diaphragm studio microphone using an edge-terminated capsule. It has very low noise circuitry and a fixed cardioid pa...	For angled and vertical use
Audix CX-212	A large diaphragm studio microphone with a 25mm capsule. The polar pattern is multi-pattern.	For angled and vertical use
Behringer B2	A dual diaphragm design with a 1' capsule which can be selected to either an omni or a cardioid pattern. It uses a transformerless ou...	For angled and vertical use
Behringer C1	A large diaphragm studio microphone with a flat response and ultra low-noise transformerless FET electronics.	For angled and vertical use
Berliner Microphones USA U7	A large-diaphragm studio microphone with a fixed polar pattern. The capsule is a centre contact type with a 6-micron gold-evaporated ...	For angled and vertical use
BeyerDynamic M 99	Very large capsule microphone for low frequency instruments such as kick-drum, double bass and tenor saxophone. Also recommended as a...	For angled and vertical use
BeyerDynamic MC 742	This microphone has been withdrawn.	For angled and vertical use
Bock Audio Bock 151	The Bock 151 is a lower-priced version of the 251 microphone with a fixed cardioid pattern. A 'brite/normal' switch is added to allow...	For angled and vertical use
Bock Audio Bock 195	A fixed pattern studio microphone with a large (25mm) diaphragm capsule - dual symmetrical backplate (K67 style). The electronics are...	For angled and vertical use
Bock Audio Bock 251	A large diaphragm studio microphone that emulates a vintage '251'. The design uses a hand-wound multi-section transformer. This is ov...	For angled and vertical use
CAD Professional Microphones GXL3000	A large diaphragm multi-pattern studio microphone. The capsule is 1' gold vapour deposited.	For angled and vertical use
CAD Professional Microphones M177	Using the latest computer modelling tools has resulted in a microphone that features the best of old world and new world technology a...	For angled and vertical use
Canford Audio CSM41	This studio-grade, large diaphragm condenser features a 25mm gold sputtered diaphragm, balanced transformer output, and a machined br...	For angled and vertical use
Electrovoice RE 20	A Cardioid microphone for broadcast and recording use with an essentially flat frequency response. It is virtually free of proximity ...	For angled and vertical use
Electrovoice RE27N/D	A dynamic cardioid optimised for broadcast voice purposes. It has high sensitivity and an undistorted output at high SPL together wit...	For angled and vertical use
Manley Laboratories CR-2001	The LANGEVIN CR-2001 is Manley's entry model cardioid capacitor microphone, very handy for recording just about anything. The capsule...	For angled and vertical use
Manley Laboratories Langevin CR-3A	The Langevin CR-3A is a cardioid capacitor microphone suitable for all-purpose use in recording of music, vocals, and speech. Powered...	For angled and vertical use
Marshall Electronics MXL 1006	The MXL 1006 has a cardioid polar pattern and solid-state preamp circuitry. It uses a balanced transistor output for maximum frequenc...	For angled and vertical use
Marshall Electronics MXL 2001	This condenser mic has a large (1') gold-sputtered diaphragm, with FET preamp and balanced transformer output. It comes in a heavy du...	For angled and vertical use
Marshall Electronics MXL 2003	Large (1.06') gold-sputtered diaphragm studio microphone, with balanced transformerless output and three-position switch for bass rol...	For angled and vertical use
Marshall Electronics MXL 2006	A large diaphragm studio condenser microphone with Class A FET electronics and a transformerless output. The capsule is a 25mm type.<...	For angled and vertical use
Marshall Electronics MXL 909	A 1' large diaphragm studio microphone with FET electronics.	For angled and vertical use
Marshall Electronics MXL DRK	A self-powered studio microphone for connection to PCs. The DRK-mac has an MXL Mic Boost interface.	For angled and vertical use
Marshall Electronics MXL M3	The M3 is a large diaphragm studio microphone. The 25mm diaphragm is 6 micron gold-sputtered and the electronics are all-FET with a t...	For angled and vertical use
Marshall Electronics MXL V6	A side-address studio microphone. The 'Silicon valve' design uses a FET electronics to emulate a valve-sound. The capsule is a 25mm 6...	For angled and vertical use
Marshall Electronics MXL V67	Large (1') gold-sputtered diaphragm condenser, with FET preamp and balanced transformer output. Comes in a vintage design heavy-duty...	For angled and vertical use
Marshall Electronics MXL V67i	A version of the V67(G) large diaphragm studio microphone. This version has two switch selectable diaphragms with different character...	For angled and vertical use
Marshall Electronics MXL V69	The MXL V69 is a classic large diaphragm Tube Microphone. Its classic sound enhances vocal and instrument performances. The extremely...	For angled and vertical use
Marshall Electronics MXL V76t	A large diaphragm studio microphone at an economical price. The capsule is a 25mm single diaphragm design.	For angled and vertical use
Marshall Electronics MXL V77	Large (1') gold-sputtered diaphragm coupled to a 6072 vacuum tube, known for its low inherent noise and broad dynamic range. Comes in...	For angled and vertical use
Marshall Electronics MXL V88	A studio microphone with a large diaphragm capsule but a relatively short body. The capsule is a 32mm 6 micron gold sputtered type. T...	For angled and vertical use
M-Audio Luna	A single pattern cardioid condenser with a lollipop-style all-brass capsule. The diaphragm is 1.1' and gold evaporated. A tight toler...	For angled and vertical use
M-Audio Nova	An affordable large capsule cardioid condenser microphone. The 1.1' diaphragm is gold-evaporated and the capsule is machined brass. T...	For angled and vertical use
M-Audio Solaris	Similar in style and construction to the Luna it is a triple pattern lollipop-style condenser microphone. It uses a dual-diaphragm 1....	For angled and vertical use
M-Audio Sputnik	A large-diaphragm studio microphone using vacuum tube electronics and a transformer output. The capsule is a dual diaphragm type to a...	For angled and vertical use
Microtech Gefell UM 92.1 S	The UM 92.1 S studio microphone features Georg Neumann's legendary M 7 capsule. This pressure gradient transducer uses two large diam...	For angled and vertical use
Milab DM1001	Digital microphone with 24-bit/48kHz Sigma-Delta ADC, AES/EBU digital output, and computer controlled filters and polar patterns (fre...	For angled and vertical use
Mojave Audio MA 200	A large diaphragm (1') studio microphone with a tube (valve) electronics. The capsule is a hand-selected 3 micron type and a JAN5840 ...	For angled and vertical use
Mojave Audio MA-201 fet	A large diaphragm studio microphone using FET electronics and a (Jensen) transformer output. The capsule is a 25mm design with a 3 mi...	For angled and vertical use
Nady SCM 1000	True condenser design for exceptionally low self-noise, increased dynamic range and enhanced low and high end response. Perfect for s...	For angled and vertical use
Nady SCM 900	Perfect for studio vocals, acoustic instruments, ambient instrument audio, and many live sound applications. Powerful and versatile, ...	For angled and vertical use
Nady SCM 910	Perfect for studio vocals, acoustic instruments, ambient instrument audio, and many live sound applications. Powerful and versatile, ...	For angled and vertical use
Nady SCM 920	Perfect for studio vocals, acoustic instruments, ambient instrument audio, and many live sound applications. Powerful and versatile, ...	For angled and vertical use
Nady SCM 980	True condenser design for exceptionally low self-noise, increased dynamic range and enhanced low and high end response. Perfect for s...	For angled and vertical use
Nady TCM 1050	The TCM1050 has a classic vintage look and the performance of a legendary vacuum tube microphone at low cost. It has 1' 3 micron diap...	For angled and vertical use
Nady TCM 1100	A large diaphragm tube microphone with a vintage style. It uses a 1.1' 3 micron diaphragm and the classic 12AT7 vacuum tube together ...	For angled and vertical use
Neumann SM 69 fet	The SM 69 fet stereo microphone has two separate dual-diaphragm capsules. These are mounted vertically and rotate against each other....	For angled and vertical use
Neumann TLM 103	The TLM 103 is the ideal large diaphragm microphone for all professional and semi-professional applications requiring the utmost in s...	For angled and vertical use
Neumann TLM 103D	A digital version of the TLM 103. The design incorporates a solution-D converter and supports all standard sampling frequencies from ...	For angled and vertical use
Neumann TLM 170	The TLM 170 R was the first microphone to use the successful fet 100 technology. Along with a balanced, transformerless output stage ...	For angled and vertical use
Neumann TLM 193	The TLM 193 is a large diaphragm microphone that continues Neumann's long tradition as well as offering high-end technology at an aff...	For angled and vertical use
Neumann TLM 50	A studio microphone based on the legendary M50. The capsule is flush mounted into the surface of a sphere, and this unique design giv...	For angled and vertical use
Neumann TLM 67	A studio microphone using the same K67 dual diaphragm capsule as the 1960's U67 studio workhorse. It is a classic large diaphragm des...	For angled and vertical use
Neumann U 67	For more information on this specific microphone, go to Neumanns website at http://neumannusa.com.	For angled and vertical use
Neumann U 87 Ai	The U 87 is probably the best known and most widely used Neumann studio microphone. It is equipped with a large dual diaphragm capsul...	For angled and vertical use
Neumann U 89 I	A studio microphone for universal applications, the head-grille protects a dual diaphragm capsule, and a rotary switch selects from f...	For angled and vertical use
Oktava MC 219	The hugely popular Oktava MC219 is a fixed pattern cardioid microphone featuring a large diaphragm capsule teamed with low noise disc...	For angled and vertical use
Oktava MC 220	The MC 220 is a multidirectional microphone for recording and broadcast use.	For angled and vertical use
Oktava MCL-319	A single-pattern tube (valve) large-diaphragm studio condenser microphone.	For angled and vertical use
Oktava MKL4000	The MKL4000 is a tube (valve) cardioid microphone for recording and broadcast use.	For angled and vertical use
Pearl CT40	A rectangular capsule microphone that is almost identical to the DT40 but has a fixed cardioid pattern.	For angled and vertical use
Pearl DS 60	This microphone offers stereo recording in different modes. The microphone contains two (18Hz to 25kHz) rectangular dual membrane cap...	For angled and vertical use
Pearl DT 40	A variable pattern tube (valve) microphone with a rectangular capsule. The tube is a Nuvistor and the output uses an amorphous cored...	For angled and vertical use
Pearl PML-CT40	The PML-CT40 is a rectangular capsule microphone with a dual diaphragm. It has a fixed cardioid pattern. The electronics use a Nuvist...	For angled and vertical use
Pearl PML-DT40	The PML-DT40 is a rectangular capsule microphone with a dual diaphragm. It has five polar patterns, switchable at the PSU. The electr...	For angled and vertical use
Peluso 22 251	A studio microphone styled on a vintage '251'. The large diaphragm capsule has dual diaphragms and nine polar patterns switched at th...	For angled and vertical use
Peluso P Stereo	A stereo design for studio use which emulates an SM-69. It can be run from its own supply or P48 phantom (with a slightly reduced max...	For angled and vertical use
Peluso P12	A studio microphone inspired by the AKG C12. The dual diaphragm capsule is a 34mm edge-terminated type. The polar patterns is switcha...	For angled and vertical use
Peluso R14	A ribbon microphone for studio use. The magnet assembly is Neodymium to give high output.	For angled and vertical use
Peluso SR14	A stereo version of the R14.	For angled and vertical use
Peluso TR14	A version of the R14 but using a tube impedance converter to give a buffered output comparable to capacitor microphones.	For angled and vertical use
Peluso VTB	A large diaphragm studio microphone with a 'bottle' shape. The variable pattern (9 possible) can be disabled to give a fixed (single ...	For angled and vertical use
RODE Broadcaster	A fixed cardioid pattern microphone with a 1' transducer. It uses a JFET impedance converter with bipolar output buffer. The response...	For angled and vertical use
RODE NT1000	An externally polarised 1' pressure gradient condenser for studio use. It uses a closed-loop unity-gain impedance converter with JFET...	For angled and vertical use
RODE NT1-A	An improved version of the original NT1. It retains the large capsule (25mm) with its gold-sputtered diaphragm along with the interna...	For angled and vertical use
RODE NT2	A multi-pattern large diaphragm condenser microphone with JFET impedance converter and bipolar output buffer. The dual gold-sputtered...	For angled and vertical use
RODE NT3	A slim and very stylish design with JFET impedance converter and bipolar output buffer. It uses an externally polarised 19mm capsule ...	For angled and vertical use
Samson CL7	A large diaphragm studio microphone. The capsule is a 1.1' 3 micron gold-sputtered type and the electronics are FET. Phantom operatio...	For angled and vertical use
SE Electronics R1	A studio microphone with a large ribbon transducer. The ribbon is 1.8micron aluminium, 45mm long x 4.5mm wide. The magnet assembly is...	For angled and vertical use
Sennheiser MK4	The MK 4 is a large-diaphragm true condenser microphone for professional studio recordings. Featuring fine resolution and outstandin...
Shure KSM32	Side-address cardioid condenser microphone for studio recording and live sound. A large diaphragm Class-A transformerless design. ...	For angled and vertical use
Shure KSM44	The KSM44 is a multi-pattern large-diaphragm studio condenser microphone. It uses dual ultra-thin Mylar diaphragms and has a Class A ...	For angled and vertical use
Soundelux E250	The E250 takes many of the qualities of the Elux 251 and fits them into a microphone that is specifically designed for close use (<...	For angled and vertical use
Soundelux E251C	A cardioid-only version of the Elux251. The response can be switched between 'brite' and 'normal'. The output transformer has been se...	For angled and vertical use
Soundelux ELUX 251	A multi-pattern tube condenser microphone.	For angled and vertical use
Soundelux R-1	A high quality large diaphragm FET condenser microphone with a transformerless output. Designed with broadcast speech in mind but equ...	For angled and vertical use
Soundelux U195	A cardioid FET microphone with extended bass response that can be both boosted and cut from 400Hz down to 10Hz. The capsule is a k67 ...	For angled and vertical use
Soundelux U97	A transformerless FET condenser microphone offering multi-pattern operation.	For angled and vertical use
Soundelux U99	The U99 is a large diaphragm multipattern tube microphone featuring continuously variable pattern selection at the power supply. The...	For angled and vertical use
Soundking SKEA006	A large-diaphragm (1') multi-pattern studio microphone. There are 9 switchable polar responses.	For angled and vertical use
Soundking SKEA008	A tube (valve) studio microphone with a dual-diaphragm 1' capsule. It has nine switchable polar patterns.	For angled and vertical use
Soundking SKEB001	A three pattern FET preamplifier microphone for studio use.	For angled and vertical use
Soundking SKEB004	A single diaphragm FET microphone.	For angled and vertical use
Superlux CM-H8A	A side address cardioid with a 1' capsule. The diaphragm is a 3 micron gold evaporated design, and the electronics are FET with a tra...	For angled and vertical use
Superlux CM-H8B	A 1' capsule fixed pattern condenser microphone. It is ideal for studio recording, broadcast and live sound applications. The preampl...	For angled and vertical use
Superlux CM-H8C	A dual 1' capsule microphone with selectable polar patterns. It can handle high sound pressure levels and has low noise. The micropho...	For angled and vertical use
